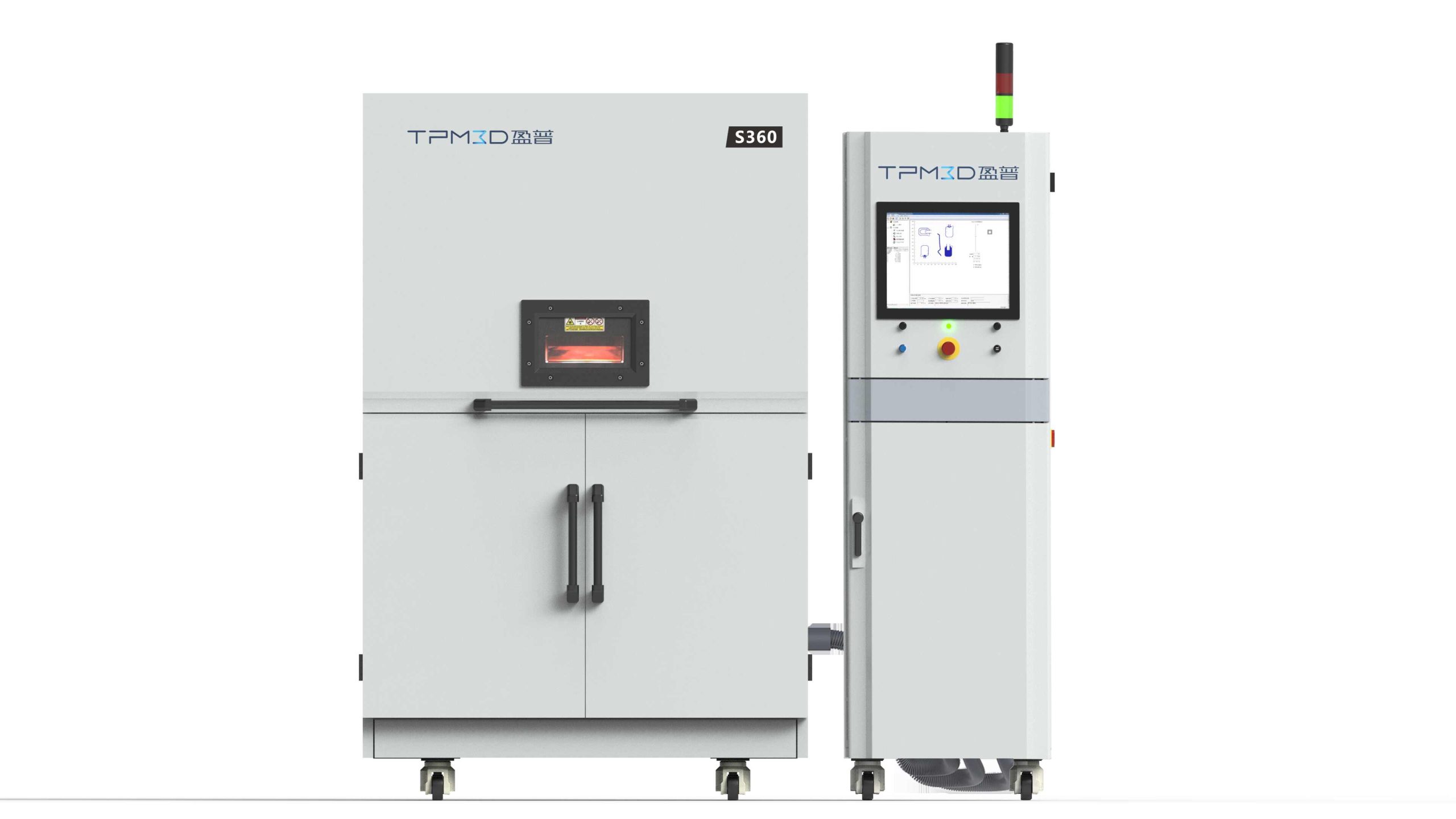

S360 | Flexible SLS 3D Printer
S360 is a flexible polymer 3D printer delivering reliable part performance for rapid prototyping and low-volume production.
- Optimized for Polymer 3D Printing: Designed specifically for engineering polymer materials used in end-use parts and functional prototypes.
- 3-Axis Dynamic Focusing: Consistent laser focus across the build volume for higher dimensional accuracy and surface quality.
- Balanced Speed & Detail: Build speed 10–25 mm/h with a max scanning speed of 15,000 mm/s for efficient production.
- High-Quality CO₂ Laser (60 W): Ensures stable processing and reliable print quality.
Main Features of S360
Polymer 3D printer S360 combines a practical build chamber with controlled thermal management to deliver repeatable polymer 3D printing results. The S360’s 360×360×600 mm chamber uses a 60 W CO₂ laser and a 3-axis dynamic focusing system to keep laser energy consistent across parts. With adjustable layer thickness and a maximum scanning speed of 15,000 mm/s, the S360 balances surface detail and throughput—making it an excellent choice for engineering prototypes, small-batch manufacturing, and product development where polymer performance and dimensional reliability matter.
S480 Specifications
| Building Chamber size XYZ(mm) | 360 × 360 × 600 |
| Dimension of Main Machine WDH(m) | 1.32 × 1.28 × 2.09 |
| Dimension of Control Unit WDH(m) | 0.60 × 1.06 × 1.92 |
| Weight of Main Machine (kg) | 1,300 |
| CO2 Laser Power (W) | 60 |
| Focusing | 3-axis, dynamic focusing |
| Building Speed (mm/h) | 10 ~ 25 |
| Layer Thickness (mm) | 0.06~0.2 Adjustable Recommended Values 0.12 |
| Diameter of Laser Beam (mm) | 0.25 |
| Maximum Scanning Speed (mm/s) | 15,000 |
| Powder Pyrometer Long Term Stability (°C/Year) | 230/160 |
| Powder Pyrometer Long Term Stability (°C/Year) | 0.1 |
| Powder Feeding type | Powder discharged upside Powder fed both sides |
| Data Format | STL |
| OS | Windows 10 |
| Data Processing Software | Voxeldance Additive -TPM3D Version |
| Options for Color of SLS Parts | White, Black or other colors |
| Auto Lock for Platform | Yes |
| Lifting Trolley | Manual |
| Active Cooling | Yes |
| Thermal Management for Control Cabinet | Chiller |
| Powder Recoater | Blade |
| Electrical Protection | PL-e Dual-channel security control |
| Nitrogen Generator | Integrated |
| Power | 380V, 3P/N/PE, 32A, 50/60Hz, Avg 3 kW |
S360 Applications
The S360 polymer 3D printing platform is suited for:
- Functional Prototypes: Accurate dimensional prototypes for fit, form, and function testing.
- Small-Batch Production: Low-volume end-use parts with consistent mechanical properties.
- Tooling & Fixtures: Custom jigs, fixtures, and assembly aids for manufacturing lines.
- Product Development: Rapid iteration for consumer goods, electronics housings, and industrial components.
TPM3D S Series 3D Printers Explained
Um dieses YouTube-Video anzuzeigen, musst du dem Service „YouTube“ zustimmen. Dabei können personenbezogene Daten (z. B. deine IP-Adresse) an Google übermittelt werden (Art. 6 Abs. 1 lit. a DSGVO).
Mehr Infos in unserer Datenschutzerklärung.
Broad Material Compatibility
S360 is optimized for a range of engineering polymers commonly used in polymer 3D printing — from PA (nylon) to flexible and reinforced formulations.

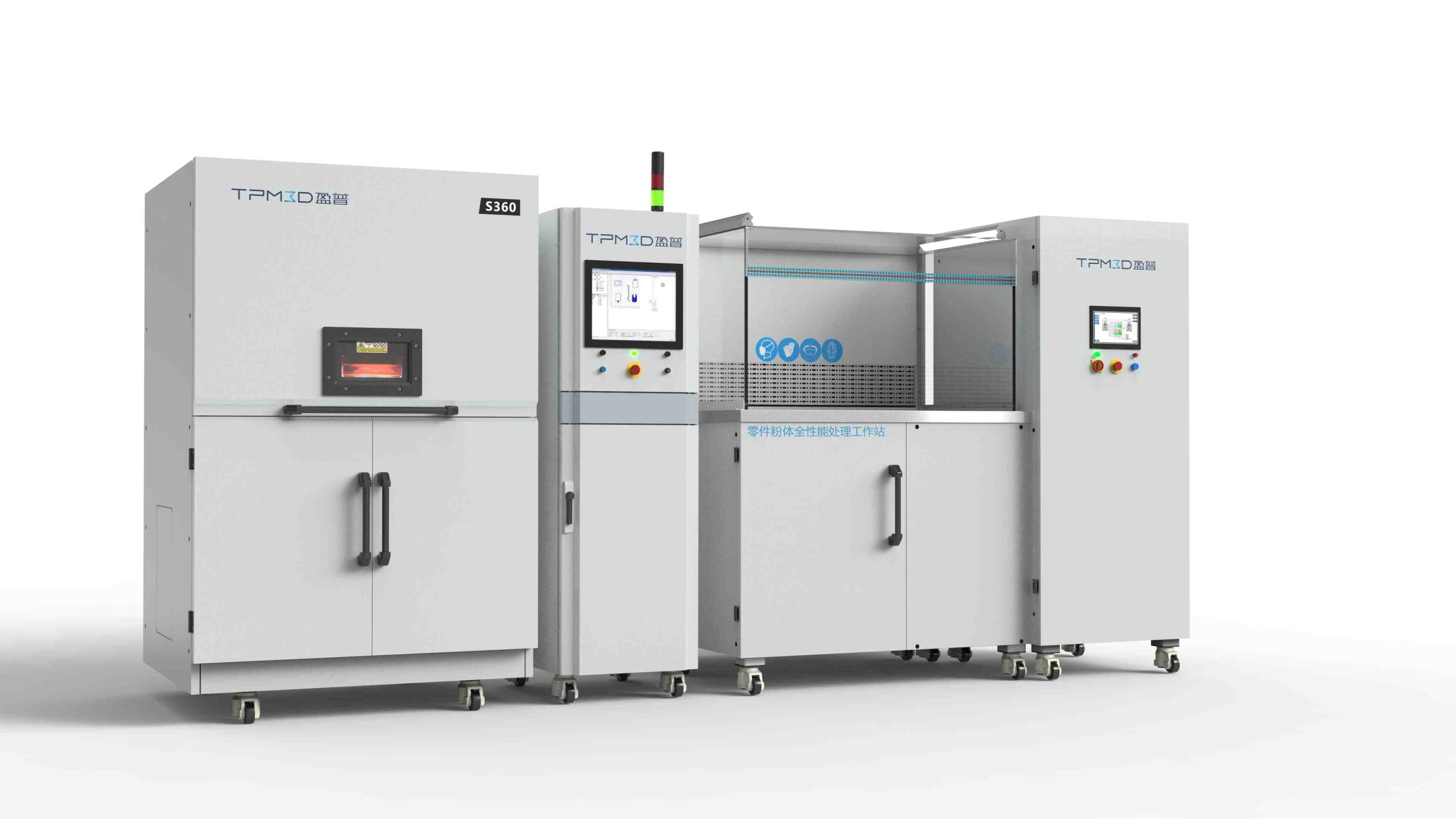

Seamless Integration with PPS
Pairing S360 with our dedicated powder handling/post-processing station the PPS improves powder reuse and workplace safety, reducing total cost of production.
